4WE6Y 4WE6C 4WE6D 液壓電磁閥 管式 手動YOULE油立

液壓系統中葉片泵正常工作一般要滿足什么條件呢？

在液壓系統中，由葉片泵的工作原理可知，無論是非平衡式葉片泵還是平衡式葉片泵，爲保證其正常工作必須滿足以下條件一起來看看吧。

1.葉片隨轉子轉動的同時，應能在轉手葉片槽內靈活移動，無卡阻現象。目的是使葉片伸出轉子外圓的長度可以隨定子內曲線的變化而改變，形成吸油腔和壓油腔密封容積大小的變化，以實現吸油和排油。

2.葉片頂部與定子內表面緊密接觸，沿定子內表面滑行，不發生脫空，以形成密封的工作容積。

3.各相對滑移運動表面，包括葉片與轉子葉片槽之間，轉子端面、定子湍面及葉片端面與兩側闆(配流盤)之間要有可靠的密封，限制壓油腔與吸油腔之間的洩漏。爲此，要嚴格控制這些表面的配合間隙。

4.相鄰兩葉片間的密封容積在吸油區逐漸擴大到******時，首先應與吸油腔切斷，然后迅速轉移到壓油腔，以防壓油腔與吸油腔直接溝通。爲此要求配流盤吸、排油窗口之間沿圓周的間隔，即兩個封油角應等于或稍大于相鄰兩葉片之間的夾角。同時，爲了避免發生困油現象，應使兩封油葉片之間的容腔在兩個封油角角度范圍內移動時，其容積大小保持不變。

5.葉片泵在啓動時要有足夠的轉速産生必要的離心力將葉片甩出，使葉片在根部尚無油液壓力作用的情況下，葉片頂部也能緊貼定子內表面，以形成密封容積，使泵進入吸、壓油工作狀態。

6.吸油腔應充滿油液，不得出現吸空，否則混入空氣，壓油腔不能正常建立壓力。爲保證吸油連續，對最高轉速和油液黏度都有一定限制。當轉速超過1800r/min時，由于吸油速度太大，油液可能供給不足，除非結構上采取措施以擴大吸油通道；油液過于黏稠，流動阻力較大，也容易造成吸油不足。

==============▼單頭6通徑(插座式)▼==============

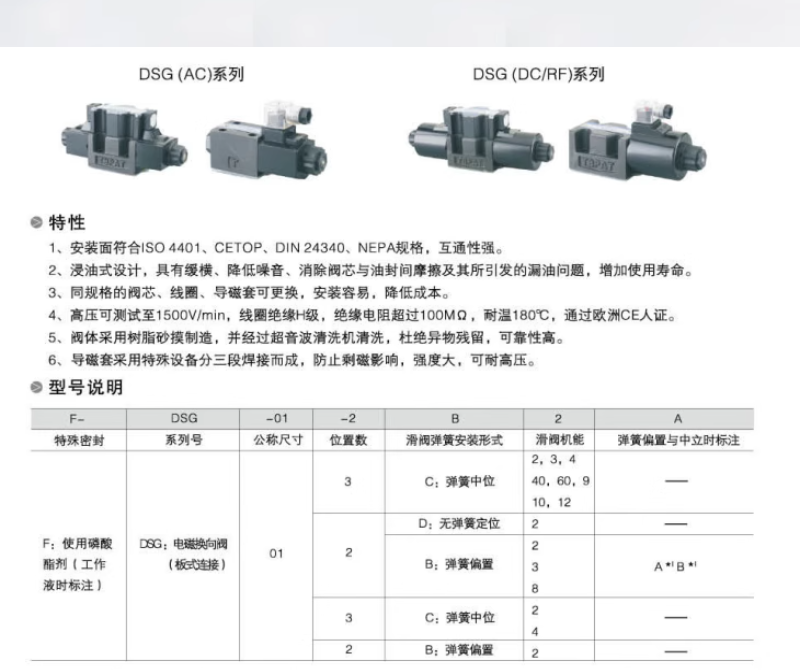

DSG-02-2B2-D24-DL DSG-02-2B2-A120-DL DSG-02-2B2-A240-DL DSG-02-2B2L-D24-DL DSG-02-2B2B-D24-DL
DSG-02-2B2A-D24-DL DSG-02-2B3-D24-DL DSG-02-2B3B-D24-DL DSG-02-2B3A-D24-DL DSG-02-2B4B-D24-DL
DSG-02-2B60B-D24-DL DSG-02-2B8-D24-DL DSG-02-2B10B-D24-DL DSG-02-2B11B-D24-DL
==============▼單頭6通徑(接線盒式)▼==============
DSG-02-2B2-D24-LW DSG-02-2B2-A110-LW DSG-02-2B2-A220-LW DSG-02-2B2L-D24-LW DSG-02-2B2B-D24-LW
DSG-02-2B2A-D24-LW DSG-02-2B3-D24-LW DSG-02-2B3B-D24-LW DSG-02-2B3A-D24-LW DSG-02-2B4B-D24-LW
DSG-02-2B60B-D24-LW DSG-02-2B8-D24-LW DSG-02-2B10B-D24-LW DSG-02-2B11B-D24-LW
==============▼雙頭6通徑(插座式)▼==============
DSG-02-3C2-D24-DL DSG-02-3C2-A110-DL DSG-02-3C2-A220-DL DSG-02-3C4-D24-DL
DSG-02-3C4-A110-DL DSG-02-3C4-A220-DL DSG-02-3C60-D24-DL DSG-02-3C60-A110-DL
DSG-02-3C60-A220-DL DSG-02-2D2-D24-DL DSG-02-2D2-A110-DL DSG-02-2D2-A220-DL
DSG-02-2N2-D24-DL DSG-02-3C9-D24-DL DSG-02-3C10-D24-DL DSG-02-3C11-D24-DL DSG-02-3C12-D24-DL
==============▼雙頭6通徑(接線盒式)▼==============
DSG-02-3C2-D24-LW DSG-02-3C2-A110-LW DSG-02-3C2-A220-LW DSG-02-3C4-D24-LW
DSG-02-3C4-A110-LW DSG-02-3C4-A220-LW DSG-02-3C60-D24-LW DSG-02-3C60-A110-LW
DSG-02-3C60-A220-LW DSG-02-2D2-D24-LW DSG-02-2D2-A110-LW DSG-02-2D2-A220-LW
DSG-02-2N2-D24-LW DSG-02-3C9-D24-LW DSG-02-3C10-D24-LW DSG-02-3C11-D24-LW DSG-02-3C12-D24-LW
S-BSG-03-2B2-D24-N1-51 S-BSG-03-2B2-A240-N1-51 S-BSG-03-2B3A-D24-N1-51 S-BSG-03-2B3A-A240-N1-51
S-BSG-03-2B3B-D24-N1-51 S-BSG-03-2B3B-A240-N1-51 S-BSG-03-3C3-D24-N1-51 S-BSG-03-1PN/NP
S-BSG-06-2B2-D24-N1-51 S-BSG-06-2B2-A240-N1-51 S-BSG-06-2B3A-D24-N1-51 S-BSG-06-2B3A-A240-N1-51
S-BSG-06-2B3B-D24-N1-51 S-BSG-06-2B3B-A240-N1-51 S-BSG-06-1PN/NP S-BSG-10-2B3A-D24(A240)-N1-51
S-BSG-10-2B3B-D24(A240)-N1-51
==============▼溢流閥▼==============
BSG-03-2B3A-D24(A240)-N1-48 BSG-03-2B3B-D24(A240)-N1-48 BSG-03-2B2-D24(A240)-N1-48
BSG-03-3C3-D24(A240)-N1-48 BSG-06-2B3A-D24(A240)-N1-48 BSG-06-2B3B-D24(A240)-N1-48
BSG-06-2B2-D24(A240)-N1-48 BSG-10-2B3A-D24(A240)-N1-48 BSG-10-2B3B-D24(A240)-N1-48
BSG-03-1PN/NP BSG-06-1PN/NP BST-03-2B3A-D24(A240)-N1-48

BST-03-2B3B-D24(A240)-N1-48 BST-03-2B2-D24(A240)-N1-48 BST-06-2B3A-D24(A240)-N1-48
BST-06-2B3B-D24(A240)-N1-48 BST-06-2B2-D24(A240)-N1-48 BST-10-2B3A-D24(A240)-N1-48
BST-10-2B3B-D24(A240)-N1-48
4WE6D61-CG24N9Z5L  4WE6D61-CW220N9Z5L  4WE6E61-CG24N9Z5L  4WE6E61-CW220N9Z5L  4WE6F61-CG24N9Z5L  4WE6F61-CW220N9Z5L  4WE6G61-CG24N9Z5L  4WE6G61-CW220N9Z5L  4WE6H61-CG24N9Z5L  4WE6H61-CW220N9Z5L  4WE6J61-CG24N9Z5L  4WE6J61-CW220N9Z5L  4WE6L61-CG24N9Z5L  4WE6L61-CW220N9Z5L  4WE6M61-CG24N9Z5L  4WE6M61-CW220N9Z5L  4WE6P61-CG24N9Z5L  4WE6P61-CW220N9Z5L  4WE6U6-CW220N9Z5L  4WE6U61-CG24N9Z5L  4WE6W61-CG24N9Z5L  4WE6W61-CW220N9Z5L  4WE6Y61-CG24N9Z5L  4WE6Y61-CW220N9Z5L  電磁閥線圈24V/220V  4WE6A61B/CG24N9Z5L  4WE6A61B/CW220-50N9Z5L  4WE6C61B/CG24N9Z5L  4WE6C61B/CW220-50N9Z5L  4WE6D61B/CG24N9Z5L  4WE6D61B/CW220-50N9Z5L  4WE6Y61B/CG24N9Z5L  4WE6Y61B/CW220-50N9Z5L  4WE6EA61B/CG24N9Z5L  4WE6EB61B/CG24N9Z5L  4WE6JA61B/CG24N9Z5L  4WE6HA61B/CG24N9Z5L  3WE6A61B/CG24N9Z5L  3WE6B61B/CG24N9Z5L  4WE6E61B/CG24N9Z5L  4WE6E61B/CW220-50N9Z5L  4WE6J61B/CG24N9Z5L  4WE6J61B/CW220-50N9Z5L  4WE6D62/OFEG24N9K4  4WE6D61B/OFCW220-50N9Z5L  4WE6G61B/CG24N9Z5L  4WE6G61B/CW220-50N9Z5L  4WE6H61B/CG24N9Z5L  4WE6H61B/CW220-50N9Z5L  4WE6M61B/CG24N9Z5L  4WE6M61B/CW220-50N9Z5L  4WE6L61B/CG24N9Z5L  4WE6F61B/CG24N9Z5L  GD-4WE6D61B/CG24N9Z5L  GD-4WE6D61B/CW220-50N9Z5L  GD-4WE6D61B/CW127-50N9Z5L  GD-4WE6E61B/CG24N9Z5L  GD-4WE6E61B/CW220-50N9Z5L  GD-4WE6E61B/CW127-50N9Z5L  GD-4WE6H61B/CG24N9Z5L  GD-4WE6H61B/CW220-50N9Z5L  GD-4WE6H61B/CW127-50N9Z5L  GD-4WE6J61B/CG24N9Z5L  GD-4WE6J61B/CW220-50N9Z5L  GD-4WE6J61B/CW127-50N9Z5L  GD-4WE6G61B/CG24N9Z5L  GD-4WE6G61B/CW220-50N9Z5L  GD-4WE6G61B/CW127-50N9Z5L  4WE10D31B/CG24N9Z5L  4WE10D31B/CW220-50N9Z5L  4WE10E31B/CG24N9Z5L  4WE10E31B/CW220-50N9Z5L  4WE10G31B/CG24N9Z5L  4WE10G31B/CW220-50N9Z5L  4WE10H31B/CG24N9Z5L  4WE10H31B/CW220-50N9Z5L  4WE10J31B/CG24N9Z5L  4WE10J31B/CW220-50N9Z5L  4WE6D60/SG24N9K4/V
